Hydraulic Breakout Tools

In recent years, the drilling industry has demanded a safer workplace. BLACKDOG™ INDUSTRIES has responded to this demand with its Hydraulic Breakout Wrench: a safer, hands-free way to breakout drill tooling while increasing productivity.

Our tools have been used on sonic, water well, oil and gas rigs as well as on workover rigs in northern Alberta.




BOW310

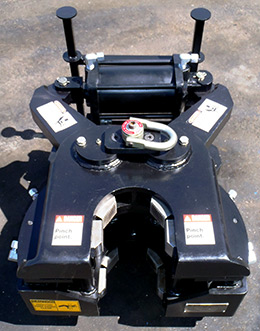

BOW155

Hydraulic Breakout Wrench (BOW)

The Hydraulic Breakout Wrench (BOW) by BLACKDOG™ INDUSTRIES is an essential tool for success in today's competitive drilling market. The BOW eliminates the need for using tongs or hand held pipe wrenches and minimizes the time spent breaking joints. The makeup and breakdown of drill tooling is safer and more productive with the BOW.

The BOW comes in a range of sizes and capabilities to suit any industry’s requirements.

Please contact us for more information. We often do custom modifications to our wrenches to adapt them for a client’s specific needs.



BOW
Model		 Operating
Range (inches)		 Maximum
Torque (Ft.Lbs.)		 Overall Dimensions
(WxDxH)		 Hydraulic
Requirements		 Weight
(Lbs.)
BOW155 1.5" - 5.5" 10,000 24" x 24" x 18" 15-20 GPM
3000 psi		 760
BOW310 3" - 10" 13,000 27" x 28" x 18" 15-20 GPM
3000 psi		 975
BOW310H 3" - 10" 21,000 27" x 28" x 18" 15-20 GPM
3000 psi		 1025

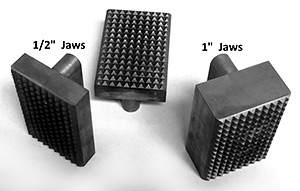

Replacement jaws are available upon request

PIPE Spinner

BLACKDOG™ INDUSTRIES’s optional Pipe Spinner increases productivity while maintaining a hands-free operation.


Features
  • Adjustable clamp pressure
  • Adjustable speed control
  • Easy to mount
  • Upper and lower spring float system to allow for easy thread engagement and disengagement

Specifications
  • Pipe Range: 2" - 7"

  • Torque Rating:
    • Standard Model: 415 Ft-Lbs max
    • Heavy Duty Model: 755 Ft-Lbs max

  • Weight: 350 Lbs.

  • Dimensions:
    • 30" Width
    • 23" Height
    • 30" Depth
Spring Float System

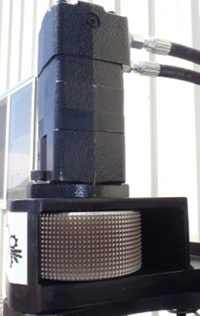

Serrated Drive Wheel
6-Valve unit for use with
optional Pipe Spinner

Control Panel

BLACKDOG™ INDUSTRIES’s Control Panel, once supplied with the necessary hydraulics, facilitates operation of the BOW and Pipe Spinner.


Features
  • Lock out mechanisms to meet safety requirements
  • Precision control for both clockwise and counter clockwise rotational torque
  • Precision control of clamping force of upper and lower jaws as well as Pipe Spinner
  • Priority valve to regulate the hydraulic oil flow to the tool, allows the unit to be supplied with up to 50 GPM
  • Easy to mount

Specifications
  • Weight: 125 Lbs.

  • Dimensions:
    • 18" Width
    • 17" Height
    • 16" Depth
3-Valve unit for use
with BOW only
Internal Plumbing

Combination Unit

BLACKDOG™ INDUSTRIES has designed this unit for use on oil field workover rigs. It combines the BOW with the Pipe Spinner and Control Panel. All components are mounted on a stand that can be lifted by a forklift or a winch line.

The Control Panel allows the operator to control the rotational torque in either direction as well as the clamping pressure of the jaws.

The Pipe Spinner scopes back out of operating range when not in use to leave the BOW open for larger diameter tools.


Features
  • Lock out mechanisms to meet safety requirements
  • Precision control for both clockwise and counter clockwise rotational torque
  • Precision control of clamping force of upper and lower jaws as well as Pipe Spinner
  • Priority valve to regulate the hydraulic oil flow to the tool, allows the unit to be supplied with up to 50 GPM
  • Can be easily mounted anywhere

Specifications
  • Weight: 1800 Lbs.

  • Dimensions:
    • 34" Width
    • 47" Height
    • 40" Depth
Pipe Spinner scoped out of operating range
